Battery for BMW 5 Touring (E39)
Compatible Car Batteries for BMW 5 Touring (E39)
Model years: 09.1996 - 05.2004. Car body type: Station Wagon
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| BMW 5 Touring (E39) 520 i | 01.1997 - 09.2000 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
13.9” x 6.89” x 6.89” 353 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 277 x 174 x 175 mm |
| BMW 5 Touring (E39) 523 i | 01.1997 - 09.2000 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
13.9” x 6.89” x 6.89” 354 x 174 x 190 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| BMW 5 Touring (E39) 540 i | 01.1997 - 05.2004 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
13.9” x 6.89” x 6.89” 353 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 278 x 175 x 190 mm |
| BMW 5 Touring (E39) 528 i | 01.1997 - 09.2000 |
20.39” x 10.98” x 9.45” 354 x 175 x 190 mm |
13.9” x 6.89” x 6.89” 315 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 278 x 175 x 175 mm |
| BMW 5 Touring (E39) 530 d | 08.1998 - 09.2000 |
20.39” x 10.98” x 9.45” 513 x 226 x 223 mm |
13.9” x 6.89” x 6.89” 512 x 223 x 220 mm |
10.91” x 6.85” x 6.89” 278 x 175 x 190 mm |
| BMW 5 Touring (E39) 525 tds | 03.1997 - 05.2004 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
13.9” x 6.89” x 6.89” 353 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 315 x 175 x 190 mm |
| BMW 5 Touring (E39) 520 i | 04.1999 - 05.2004 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
13.9” x 6.89” x 6.89” 278 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 278 x 175 x 175 mm |
| BMW 5 Touring (E39) 520 d | 02.2000 - 09.2003 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
13.9” x 6.89” x 6.89” 353 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 315 x 175 x 190 mm |
| BMW 5 Touring (E39) 525 d | 02.2000 - 05.2004 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
13.9” x 6.89” x 6.89” 353 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 315 x 175 x 190 mm |
| BMW 5 Touring (E39) 530 d | 09.2000 - 05.2004 |
20.39” x 10.98” x 9.45” 354 x 175 x 190 mm |
13.9” x 6.89” x 6.89” 353 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 278 x 175 x 190 mm |
| BMW 5 Touring (E39) 520 i | 09.2000 - 05.2004 |
20.39” x 10.98” x 9.45” 353 x 175 x 190 mm |
13.9” x 6.89” x 6.89” 278 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 277 x 174 x 175 mm |
| BMW 5 Touring (E39) 525 i | 09.2000 - 05.2004 |
20.39” x 10.98” x 9.45” 353 x 175 x 190 mm |
13.9” x 6.89” x 6.89” 278 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 277 x 174 x 175 mm |
| BMW 5 Touring (E39) 530 i | 09.2000 - 05.2004 |
20.39” x 10.98” x 9.45” 354 x 175 x 190 mm |
13.9” x 6.89” x 6.89” 353 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 278 x 175 x 175 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| BMW 5 Touring (E39) 520 i | 01.1997 - 09.2000 | 1450 | 800 | 600 |
| BMW 5 Touring (E39) 523 i | 01.1997 - 09.2000 | 1450 | 800 | 500 |
| BMW 5 Touring (E39) 540 i | 01.1997 - 05.2004 | 1450 | 900 | 760 |
| BMW 5 Touring (E39) 528 i | 01.1997 - 09.2000 | 900 | 740 | 620 |
| BMW 5 Touring (E39) 530 d | 08.1998 - 09.2000 | 1150 | 900 | 760 |
| BMW 5 Touring (E39) 525 tds | 03.1997 - 05.2004 | 1450 | 850 | 85 |
| BMW 5 Touring (E39) 520 i | 04.1999 - 05.2004 | 1450 | 780 | 540 |
| BMW 5 Touring (E39) 520 d | 02.2000 - 09.2003 | 1450 | 850 | 85 |
| BMW 5 Touring (E39) 525 d | 02.2000 - 05.2004 | 1450 | 850 | 85 |
| BMW 5 Touring (E39) 530 d | 09.2000 - 05.2004 | 920 | 850 | 760 |
| BMW 5 Touring (E39) 520 i | 09.2000 - 05.2004 | 920 | 730 | 600 |
| BMW 5 Touring (E39) 525 i | 09.2000 - 05.2004 | 920 | 760 | 620 |
| BMW 5 Touring (E39) 530 i | 09.2000 - 05.2004 | 920 | 830 | 700 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| BMW 5 Touring (E39) 520 i | 01.1997 - 09.2000 | 240 | 92 | 65 |
| BMW 5 Touring (E39) 523 i | 01.1997 - 09.2000 | 240 | 92 | 60 |
| BMW 5 Touring (E39) 540 i | 01.1997 - 05.2004 | 240 | 100 | 70 |
| BMW 5 Touring (E39) 528 i | 01.1997 - 09.2000 | 100 | 80 | 70 |
| BMW 5 Touring (E39) 530 d | 08.1998 - 09.2000 | 200 | 155 | 70 |
| BMW 5 Touring (E39) 525 tds | 03.1997 - 05.2004 | 240 | 100 | 88 |
| BMW 5 Touring (E39) 520 i | 04.1999 - 05.2004 | 235 | 77 | 65 |
| BMW 5 Touring (E39) 520 d | 02.2000 - 09.2003 | 235 | 100 | 90 |
| BMW 5 Touring (E39) 525 d | 02.2000 - 05.2004 | 235 | 95 | 88 |
| BMW 5 Touring (E39) 530 d | 09.2000 - 05.2004 | 100 | 95 | 70 |
| BMW 5 Touring (E39) 520 i | 09.2000 - 05.2004 | 100 | 74 | 65 |
| BMW 5 Touring (E39) 525 i | 09.2000 - 05.2004 | 100 | 75 | 65 |
| BMW 5 Touring (E39) 530 i | 09.2000 - 05.2004 | 100 | 95 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 S50 130 Voltage: 12 V Battery Capacity: 100 AH Cold Cranking Amps (CCA): 830 A Length: 353 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: OPEN PARTS Battery Code: BT073L3B.00 Battery Capacity: 73 AH Voltage: 12 V Cold Cranking Amps (CCA): 600 A Length: 278 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 130 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 800 A Length: 353 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |

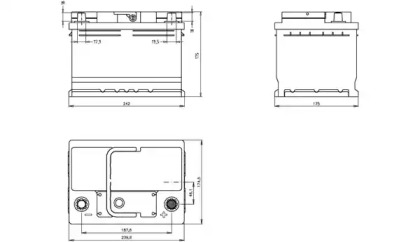

Battery Brand: OPEN PARTS Battery Code: BT060L2B.00 Battery Capacity: 60 AH Voltage: 12 V Cold Cranking Amps (CCA): 500 A Length: 242 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: BOSCH Battery Code: 0 092 S5A 130 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 850 A Length: 353 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: COMLINE Battery Code: CB096AGM Hold-down Type: B13 Voltage: 12 V Cold Cranking Amps (CCA): 760 A Battery Capacity: 70 AH Post Positions: 0 Filled Weight: 20.7 kg Length: 278 Width: 175 Height: 190 |  |
Battery Brand: VARTA Battery Code: 580901080D852 Voltage: 12 V Battery Capacity: 80 AH Cold Cranking Amps (CCA): 800 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 315 Width: 175 Height: 190 |  |

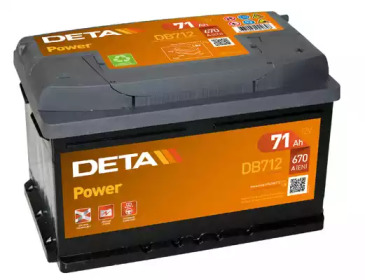

Battery Brand: DETA Battery Code: DB712 Voltage: 12 V Battery Capacity: 71 AH Cold Cranking Amps (CCA): 670 A Length: 278 Width: 175 Height: 175 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: DETA Battery Code: DF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 226 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B0 |  |
Battery Brand: DETA Battery Code: DA1000 Voltage: 12 V Battery Capacity: 100 AH Cold Cranking Amps (CCA): 900 A Length: 353 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: NPS Battery Code: U540L52B Length: 354 Width: 174 Height: 190 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 850 A |  |
Battery Brand: BOSCH Battery Code: 0 092 S30 130 Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 720 A Length: 353 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: COMLINE Battery Code: CB019PL Hold-down Type: B3 Voltage: 12 V Cold Cranking Amps (CCA): 800 A Battery Capacity: 95 AH Post Positions: 0 Filled Weight: 21.6 kg Length: 353 Width: 175 Height: 190 |  |
Battery Brand: EXIDE Battery Code: EK950 Voltage: 12 V Battery Capacity: 95 AH Height: 190 Width: 175 Length: 353 Cold Cranking Amps (CCA): 850 A Post Positions: 0 Hold-down Type: B13 Terminal Type: EN |  |
Battery Brand: DETA Battery Code: DB950 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 800 A Length: 353 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: PLATINUM Battery Code: 017E Voltage: 12 V Battery Capacity: 88 AH Cold Cranking Amps (CCA): 760 A Cold Cranking Amps (CCA) DIN: 58820 A Length: 354 Width: 175 Height: 175 Post Positions: 0 Terminal Type: T1 Hold-down Type: B13 |  |
Battery Brand: OPEN PARTS Battery Code: BT100L5.30 Battery Capacity: 100 AH Voltage: 12 V Cold Cranking Amps (CCA): 920 A Length: 353 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: OPEN PARTS Battery Code: BT100L5B.30 Battery Capacity: 100 AH Voltage: 12 V Cold Cranking Amps (CCA): 920 A Length: 353 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: DETA Battery Code: DA722 Voltage: 12 V Battery Capacity: 75 AH Cold Cranking Amps (CCA): 730 A Length: 278 Width: 175 Height: 175 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: VARTA Battery Code: 570901076D852 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 760 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 278 Width: 175 Height: 190 |  |

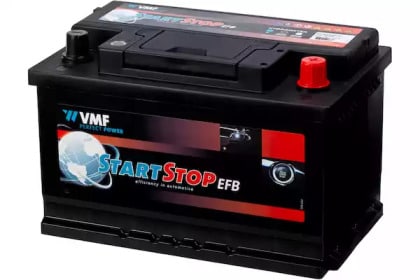

Battery Brand: VMF Battery Code: EFB565650 Voltage: 12 V Battery Capacity: 65 AH Height: 175 Width: 174 Length: 277 Cold Cranking Amps (CCA): 650 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: 60038 Voltage: 12 V Battery Capacity: 100 AH Height: 190 Width: 175 Length: 353 Cold Cranking Amps (CCA): 830 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: TUDOR Battery Code: TB802 Voltage: 12 V Battery Capacity: 80 AH Cold Cranking Amps (CCA): 700 A Length: 315 Width: 175 Height: 175 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
